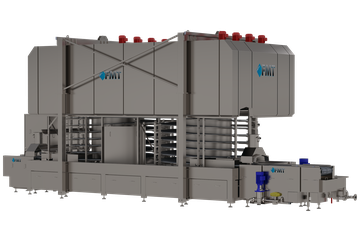

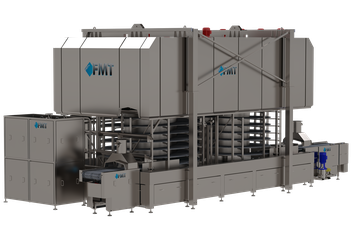

Double spiral hot air oven

FMT cooking systems provide careful heating of products by steam or hot air. Heat is always evenly distributed over full belt width. All machines need minimal pre-heating time and offer full control of process parameters like air speed, humidity, belt speed and temperature. FMT machines come in linear or spiral configurations, all with built-in belt washing system.

Drumstick gegaard.jpg

Double spiral hot air oven

FHAF-DS-100-75 closed hood left view.png
FHAF-DS-100-75 open hood left view.png

The heating spiral (FFHAF-DS) is designed to evenly and carefully heat big product batches with hot air or steam. The machine produces an even air flow at all machine levels. PLC-control offers good grip on all process parameters like air speed, humidity, belt speed and temperature. Moreover, exact dew point regulation minimizes possible weight loss. For energy supply the machine can be fitted with electric heating elements, thermal oil heating registers, steam heating registers and/or direct steam.

Summery of benefits:

  • Suitable for a wide range of products
  • PLC control with touch screen
  • Optimal micro climate due to efficient heat regulation
  • Optimal performance through optimal air flow and minimal pre heating time
  • Easy to clean (integrated belt cleaning system  and C.I.P. system)
  • Minimum heat up time and energy use



FHAF-DS-100-75 closed hood left view.png
FHAF-DS-100-75 open hood left view.png
FHAF-DS-100-75 closed hood.png
FHAF-DS-100-75 open hood.png
